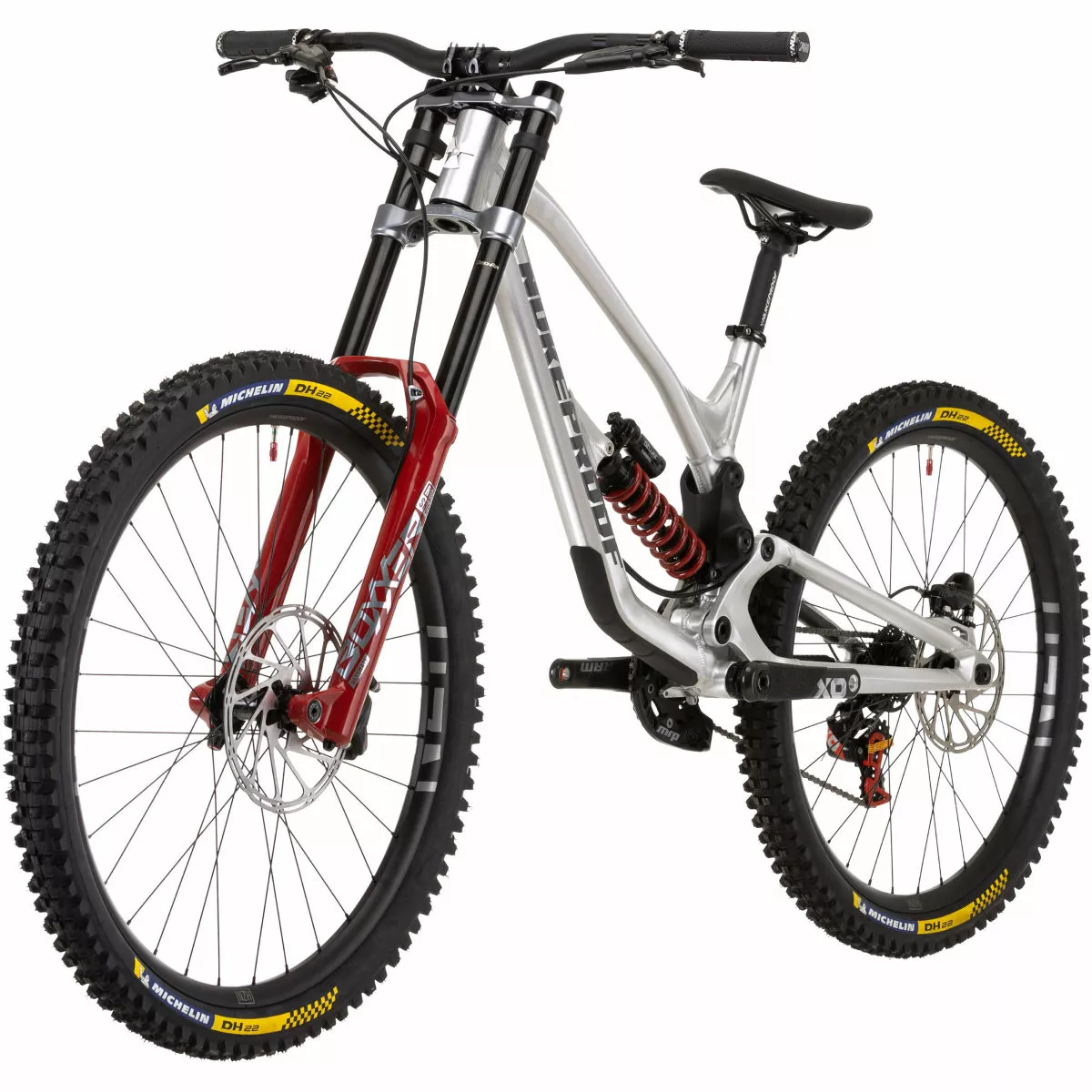

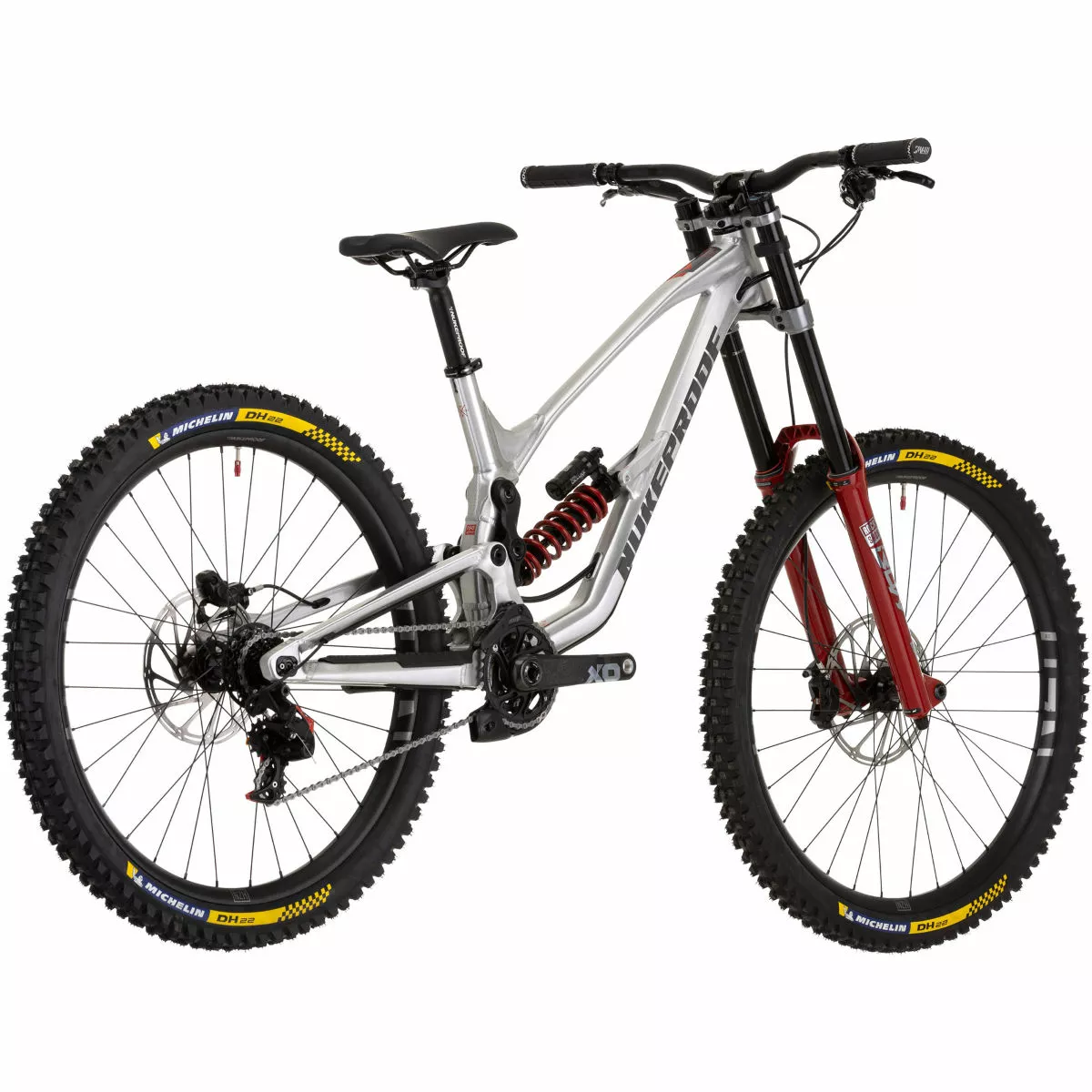

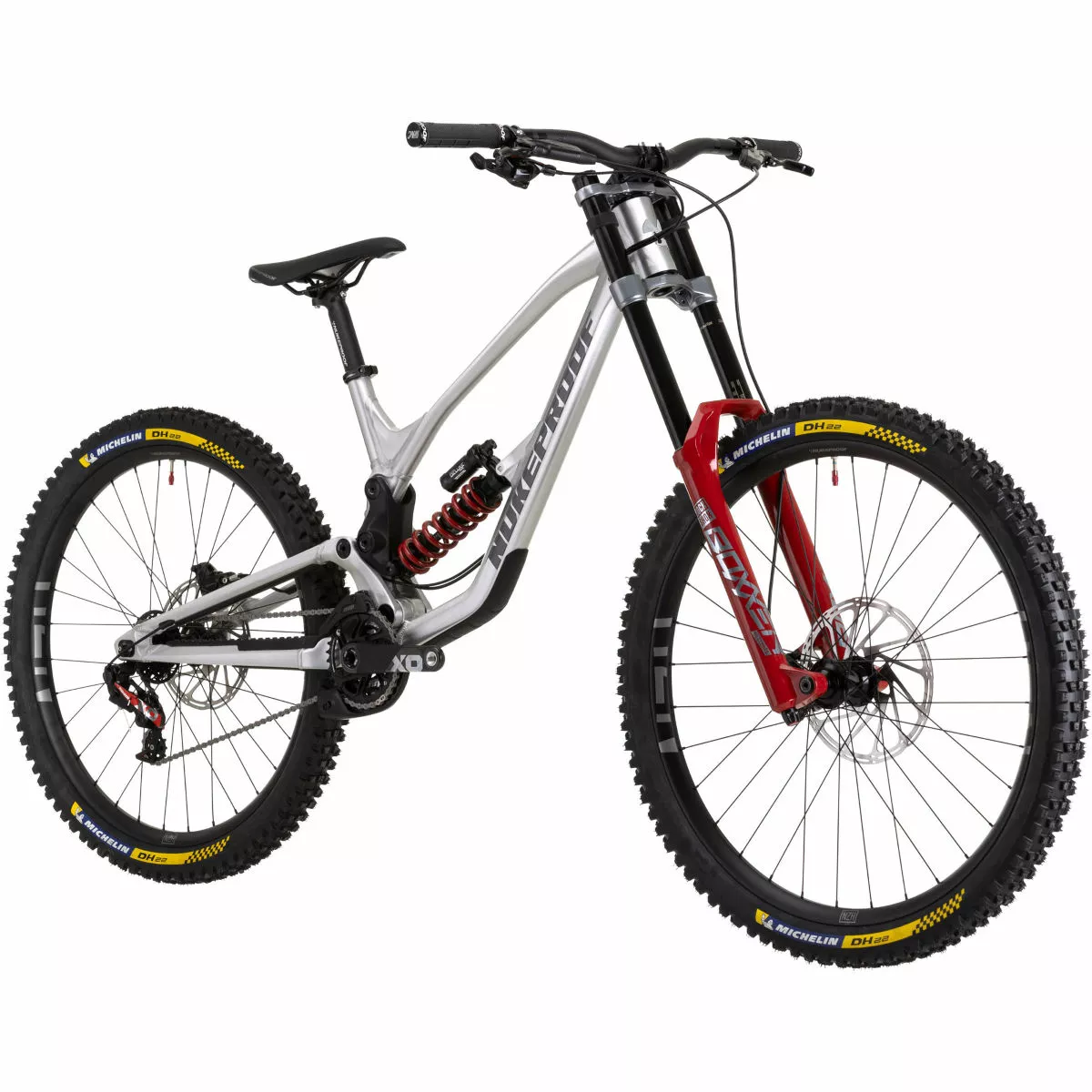

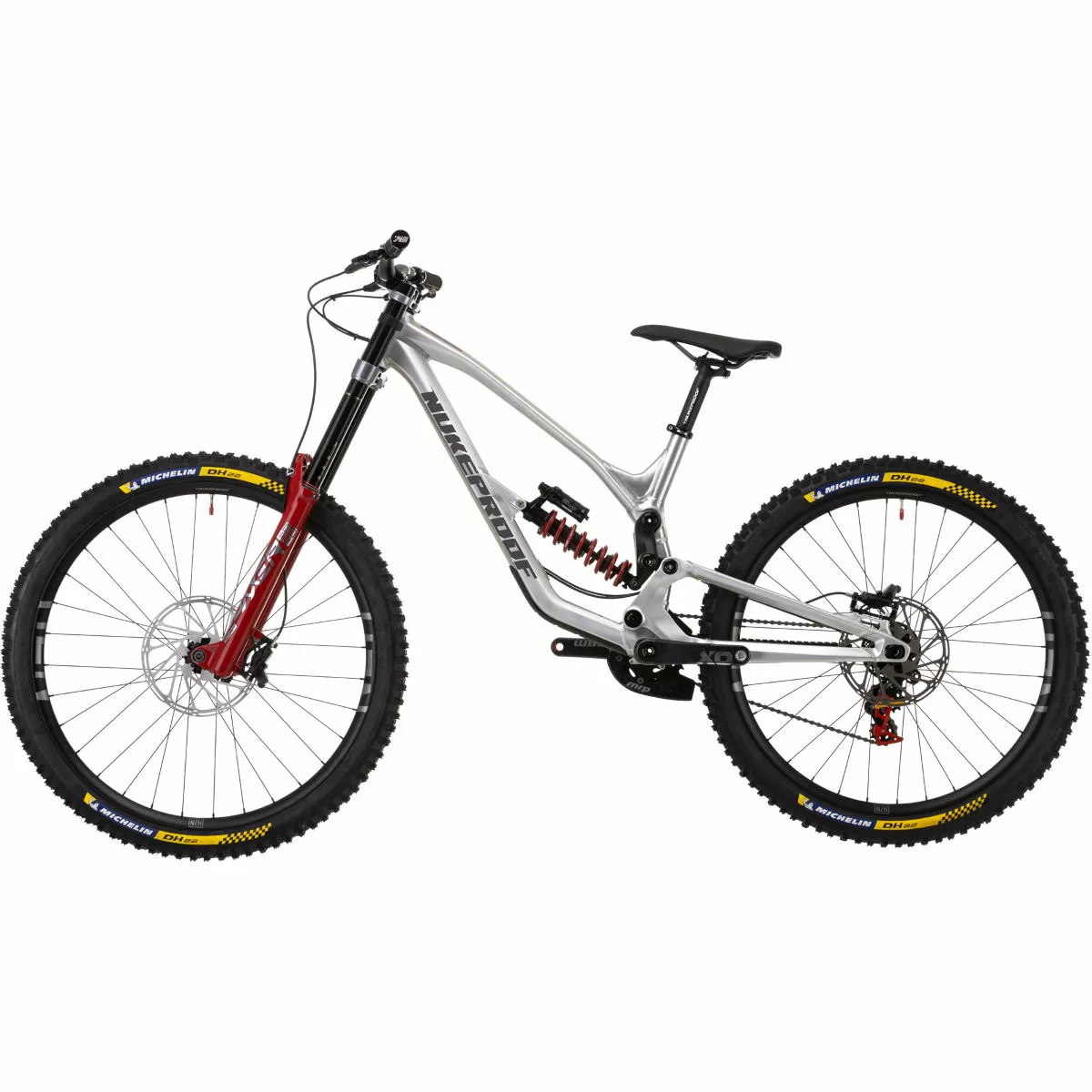

Nukeproof Dissent 297 RS Alloy Bike (X01 DH)

The Dissent 297 RS Alloy features RockShox Boxxer Ultimate forks and a Super Deluxe Coil rear shock that offers all-terrain control and exceptional traction and grip. SRAM’s high-end XO1 groupset with a XO1 DH Carbon chainset, a 7-Speed 11-25T cassette and SRAM Code R hydraulic disc brakes give you fast and dependable gear shifting, powerful all-weather braking and stylish race-ready performance. Rolling upon Nukeproof Horizon V2 DH wheels wrapped in Tubeless Read Michelin DH22 2.4″-wide tyres, this bike is built for high-level racing straight out of the box.

“It makes me want to race some World Cups again” – Sam Hill

Racing is in Nukeproof’s DNA. It comes from being developed and tested in conjunction with the world’s fastest racers.

Suspension design and frame details:

The Dissent platform was originally conceived by Nukeproof engineers as a concept to test several progression curve theories at once. However, in turning the theory into reality, we created something much better than expected, and the prototype won on its international debut at Crankworx festival’s Garbanzo Downhill race with Sam Hill.

Adjustable Suspension Main Pivot Flip Chip

It is not uncommon for different World Cup riders to want a slightly different characteristic to one another depending on factors such as their riding style and whether they run flat pedals or not. The Dissent takes this into account with an adjustable main pivot flip-chip, designed to essentially work like a bottomless token for a coil shock. The Dissent Frame now offers riders the choice of 4 main pivot positions, which alter how progressive the suspension is. Cleverly the geometry and travel do not change between positions. Note: The sag difference between each setting is around 1% so you should not need a different spring rate.

The Main pivot flip chips are fast and simple to change and offer a tailored factory set up for every rider.

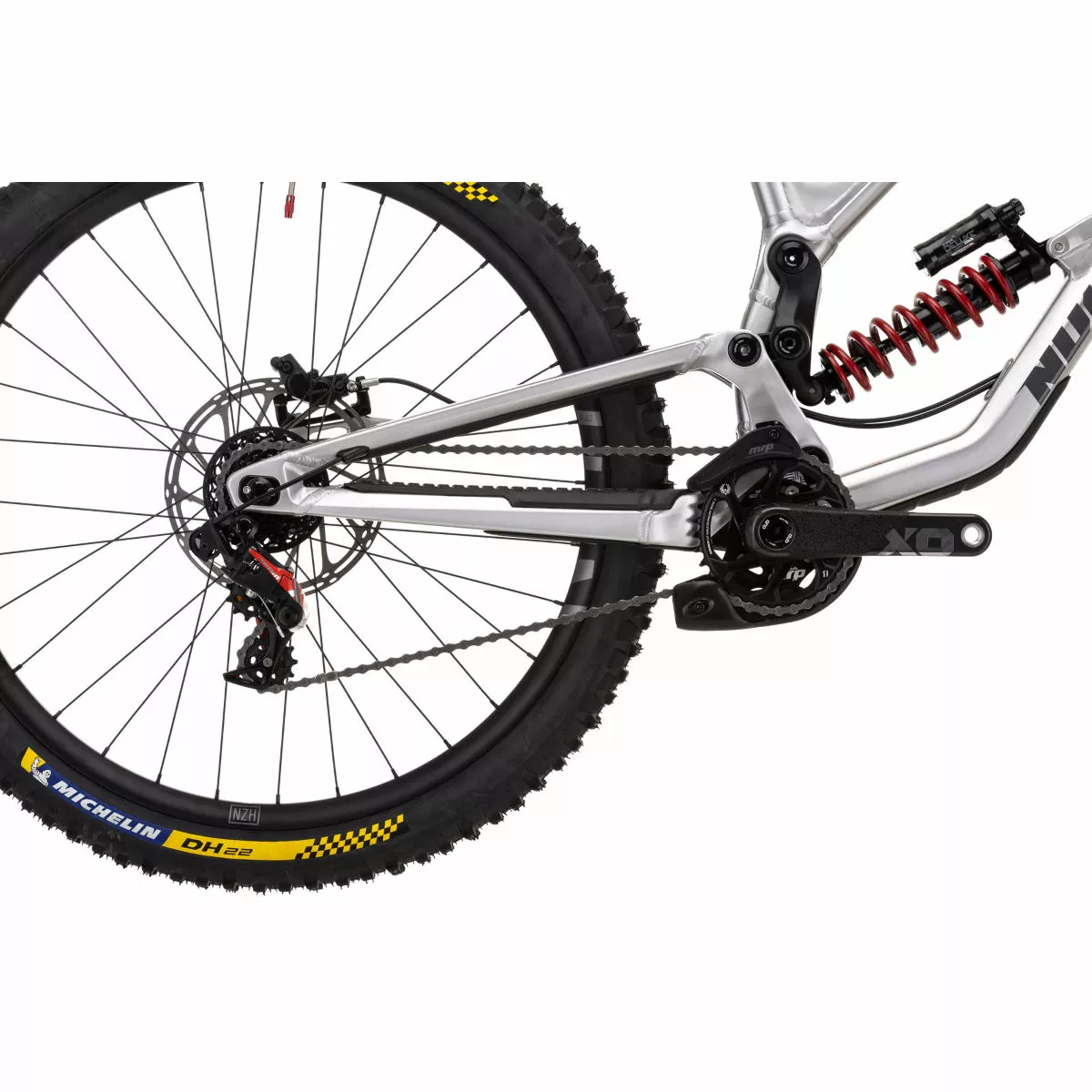

Further custom tuning can be done via new 3 position adjustable chainstay that features interchangeable dropout inserts. The chainstay flip chips allow you to alter the wheelbase by 5-10mm depending on the type of track you’re riding, your height or riding style.

The combination of frame adaptability, a custom hydroformed 6061 aluminium tubeset, a confidence-inspiring 63-degree head angle and 200mm of travel via our new Dissent platform make this bike the privateers dream. The centrally-positioned shock and linkage system ensure optimum handling while other features include a true 1.5” head tube, ISCG 05 mounts and a 157mm x 12mm rear axle to keep things stable at the rear.

Features:

Frame: Nukeproof Dissent 297 Alloy, 200mm Travel, custom triple butted hydro-formed tube set, custom-tuned rear shock configuration, internal cable routing, Enduro bearings, threaded bottom bracket, boost 157mm rear axle spacing, 3D contoured frame protection

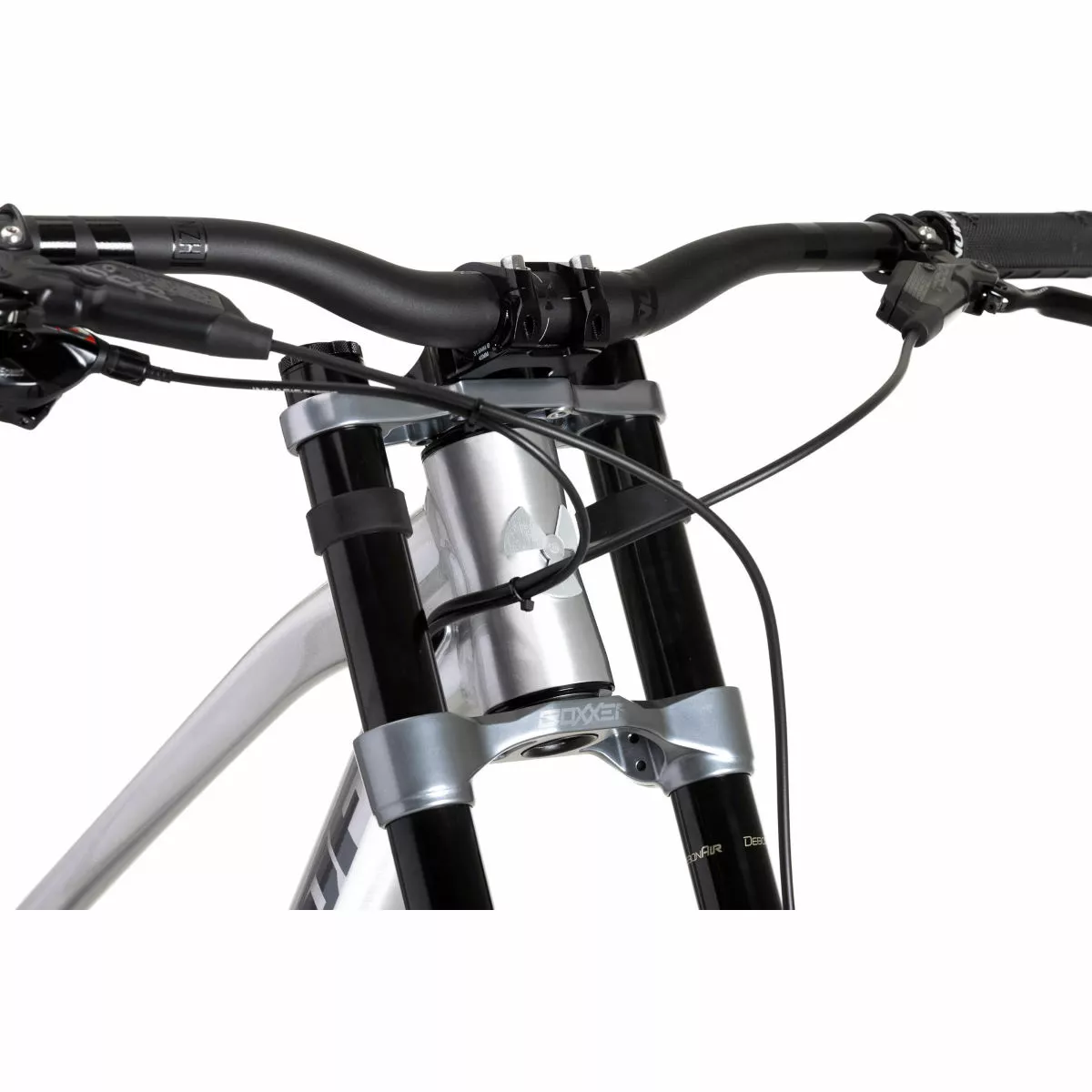

Fork: RockShox Boxxer Ultimate, Charger 2 RC2, 200mm Travel, 46mm Offset, BOOST 20x110mm, Debonair, Boxxer Red

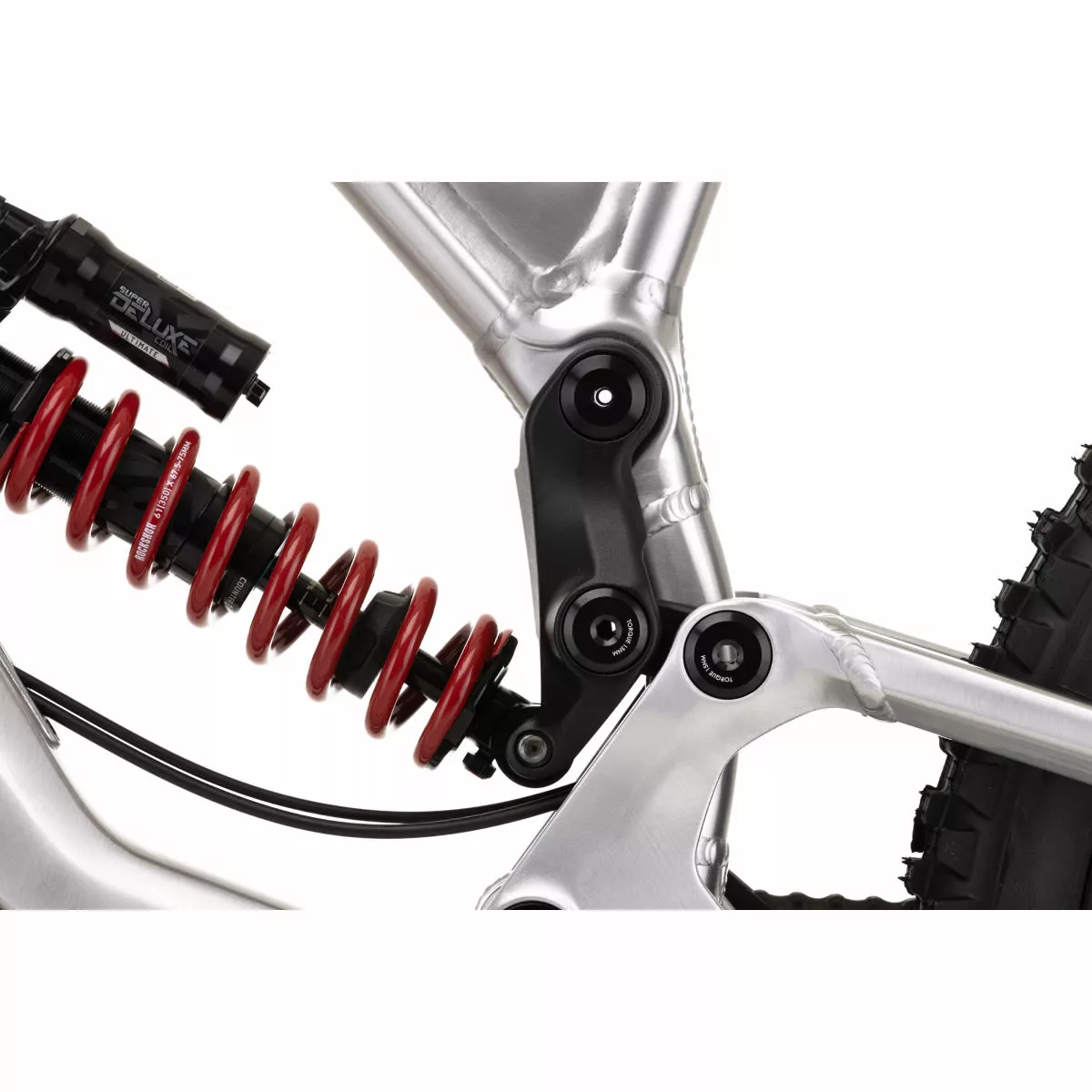

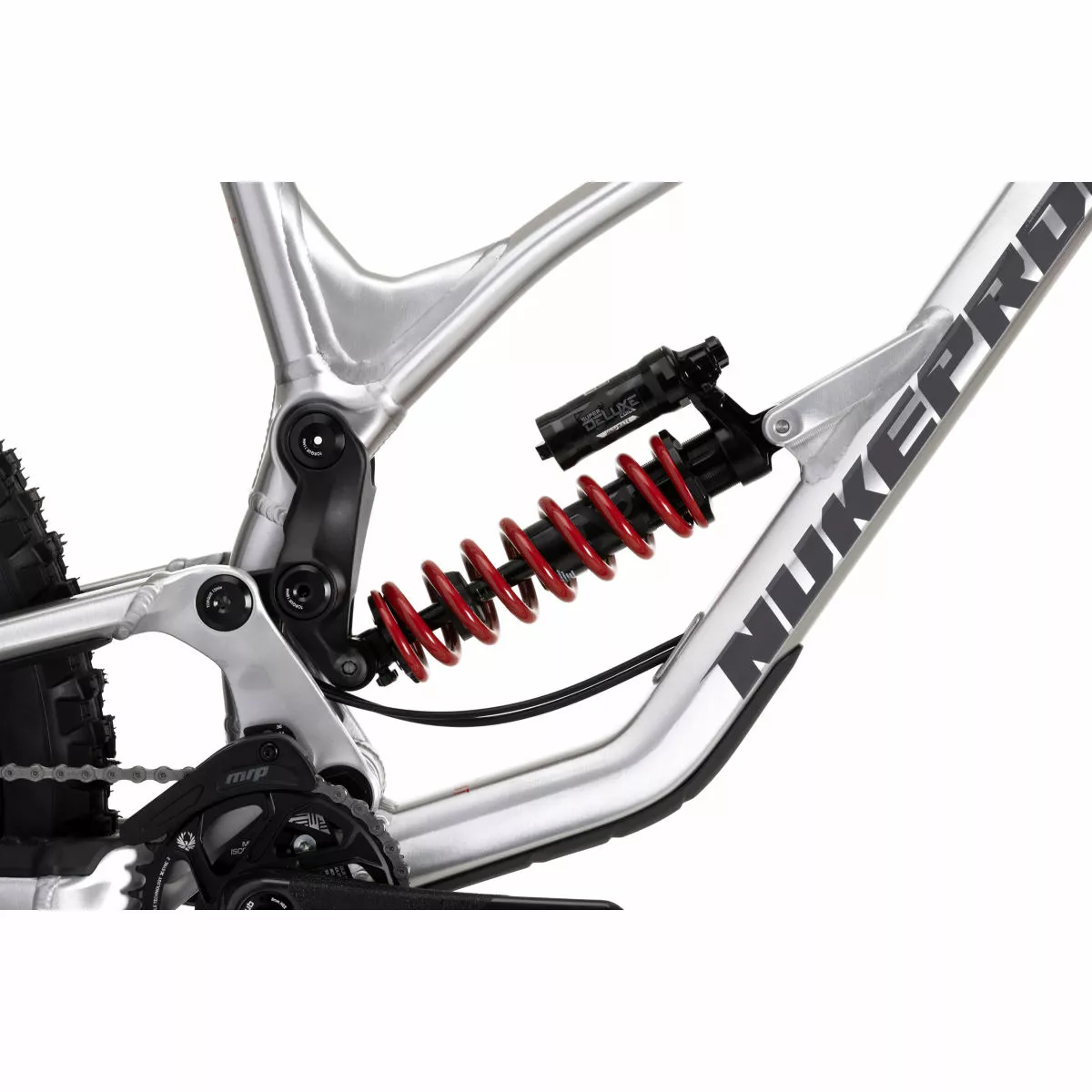

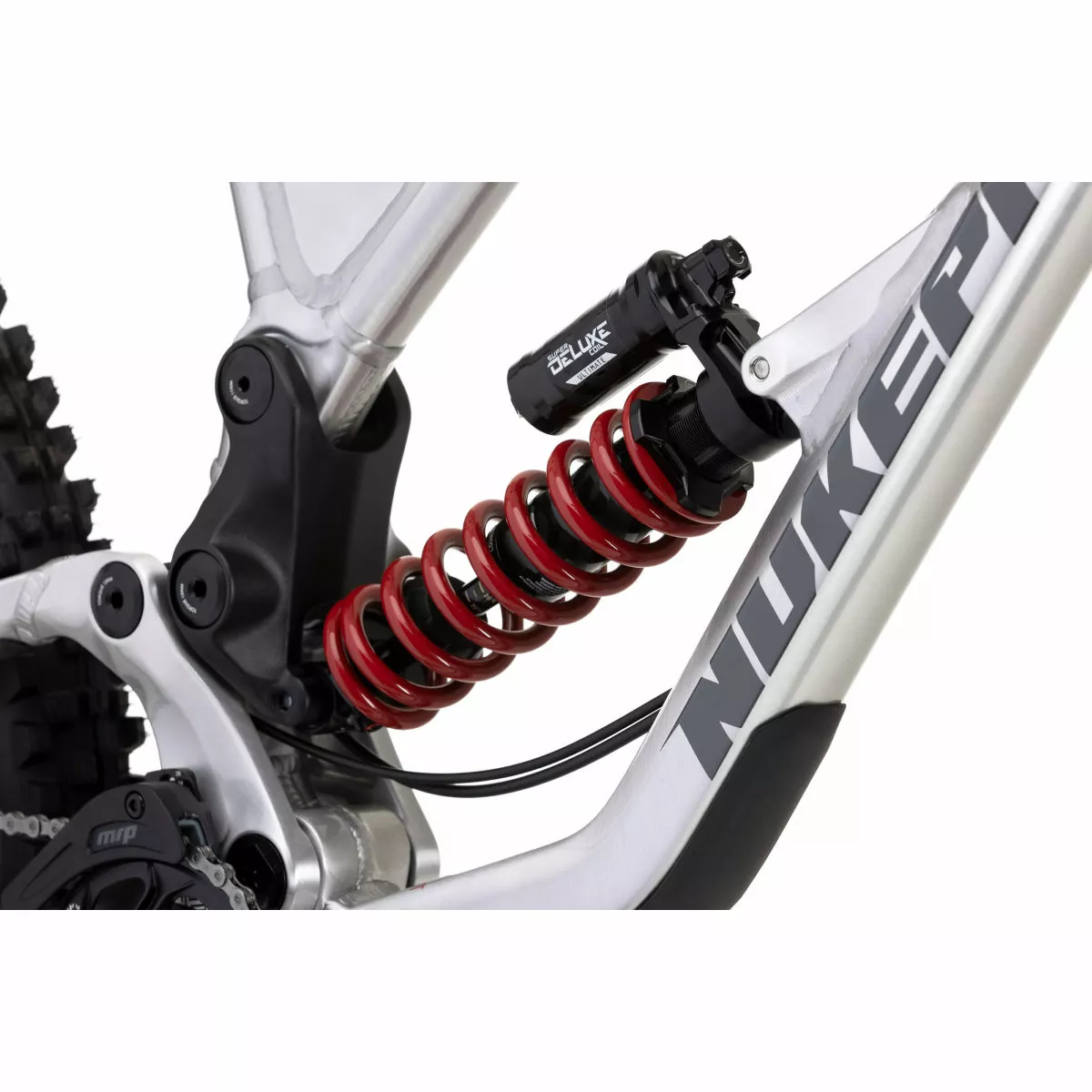

Shock: RockShox Super Deluxe Coil Ultimate DH RC, Custom Tune, 250x75mm, Bearing End, Red Coil Spring (S=300LBS/M=350LBS/L=400LBS /XL=450LBS SPRING)
Front Wheel: Nukeproof Horizon V2 DH 29″, 20x110mm
Rear Wheel: Nukeproof Horizon V2 DH 27.5″, HG Freehub, 157x12mm
Tyres: Front: Michelin DH22 29”x2.4, TLR/ Rear: Michelin DH22 27.5”x2.4, TLR

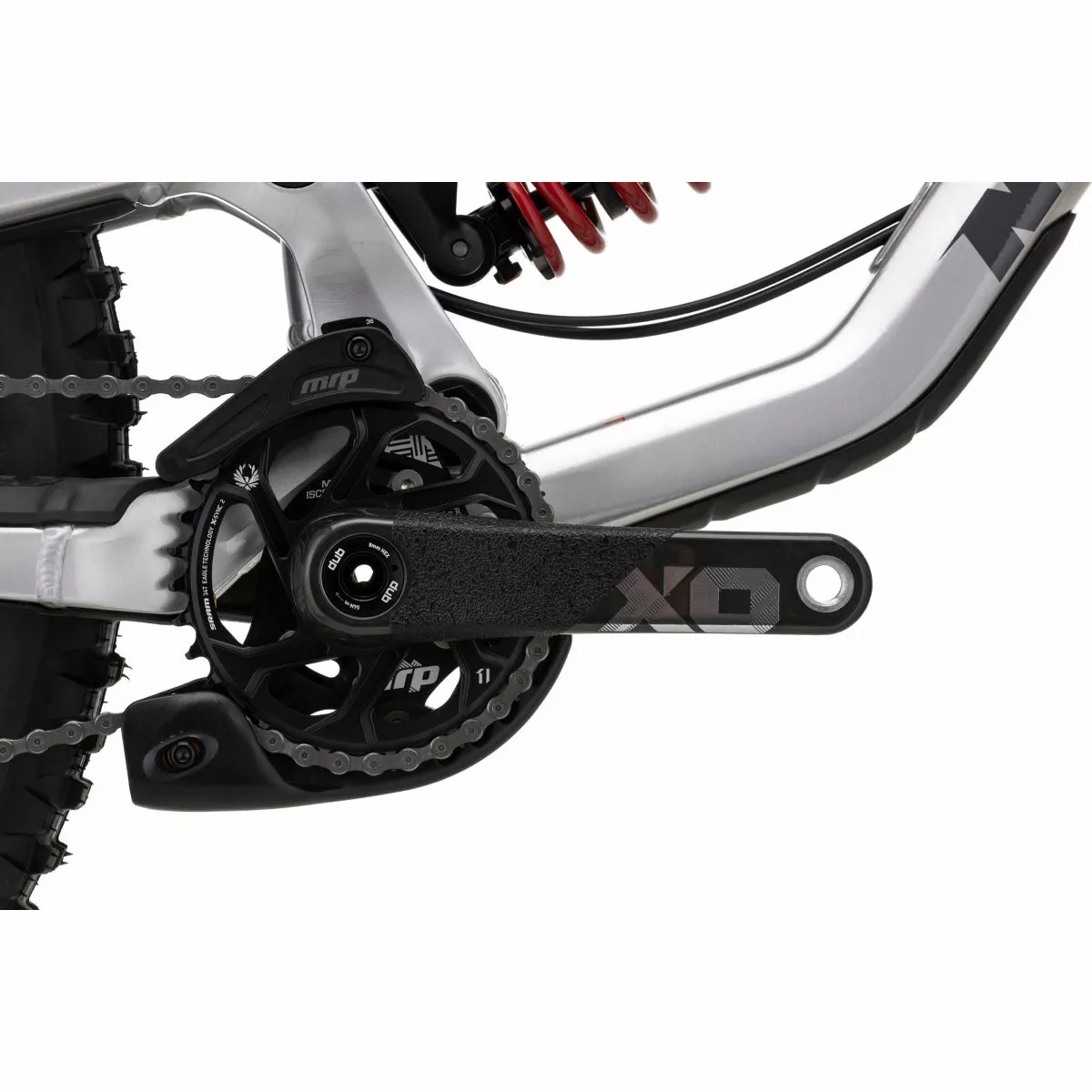

Crankset: SRAM XO1 DH Carbon X-Sync, 165mm, 34T, DUB83mm, Black
Chain Device: MRP Mini G4 32-36T ISCG-05
Shifter: SRAM XO1 7-Speed, Red
Rear Derailleur: SRAM XO1 DH 7-Speed, Red
Chain: SRAM PC-1110 11-Speed
Cassette: SRAM PG720 DH 7-Speed, XG795 11-25T

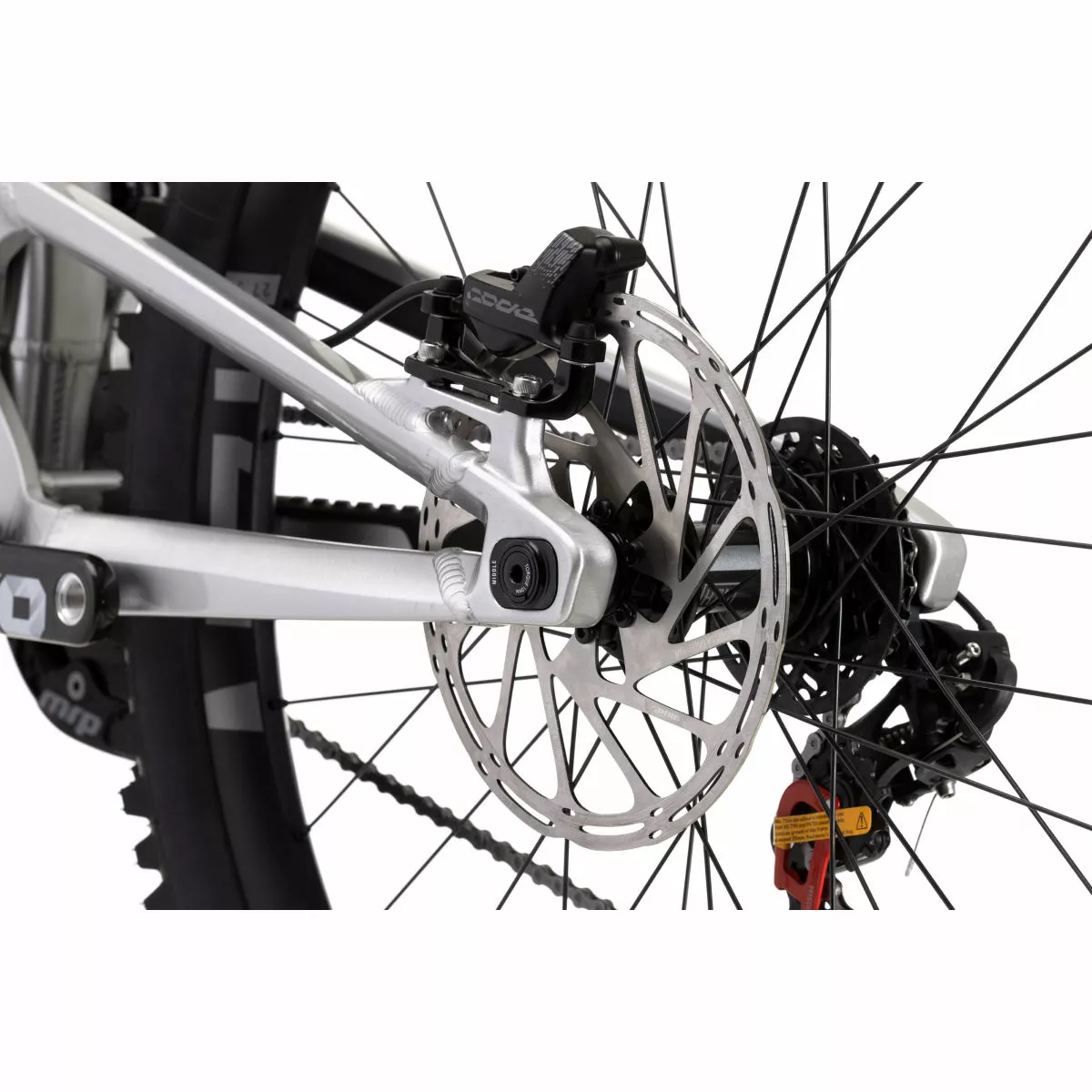

Brakes: SRAM Code R, Sintered pads
Front Rotor: SRAM Centreline, 220mm
Rear Rotor: SRAM Centreline, 200mm

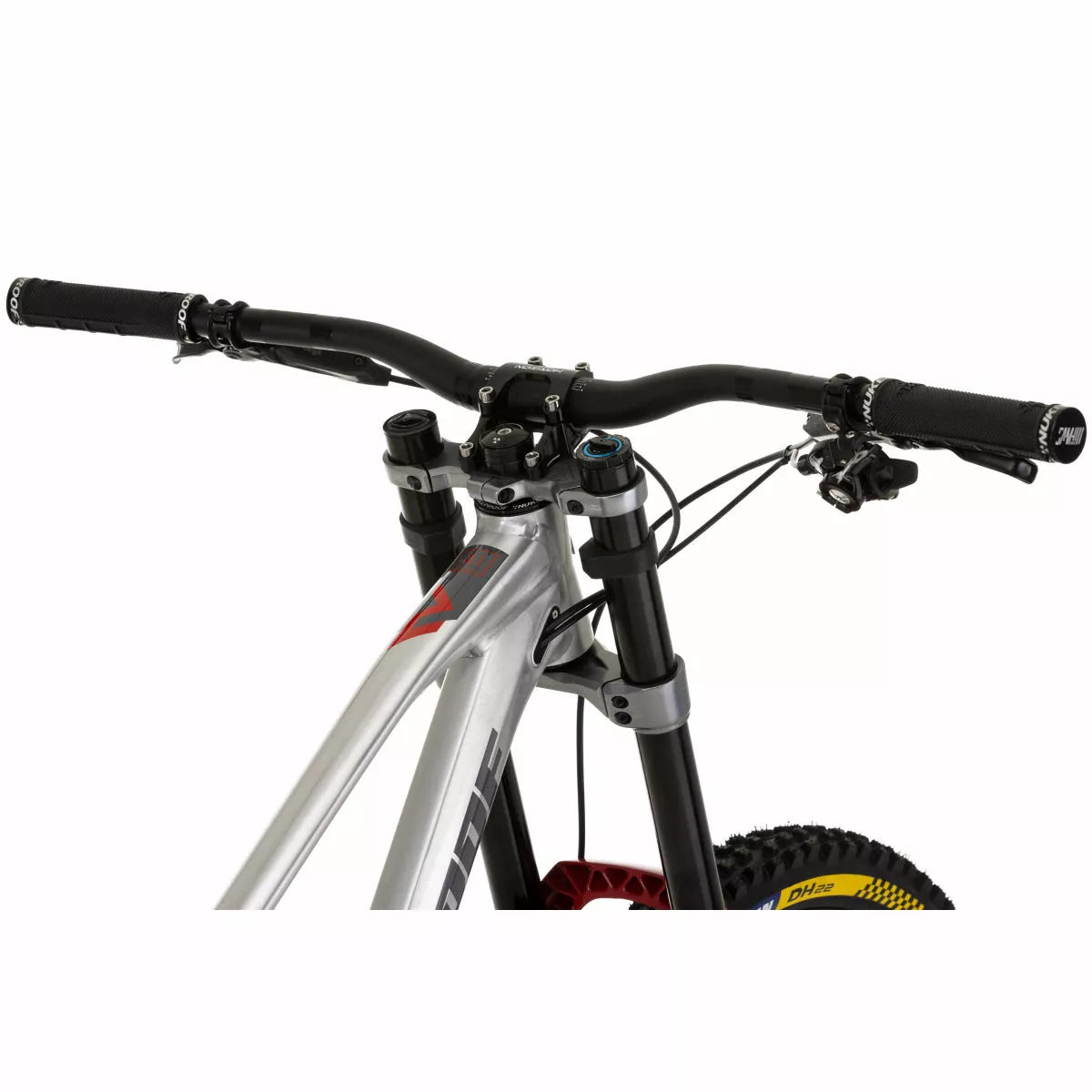

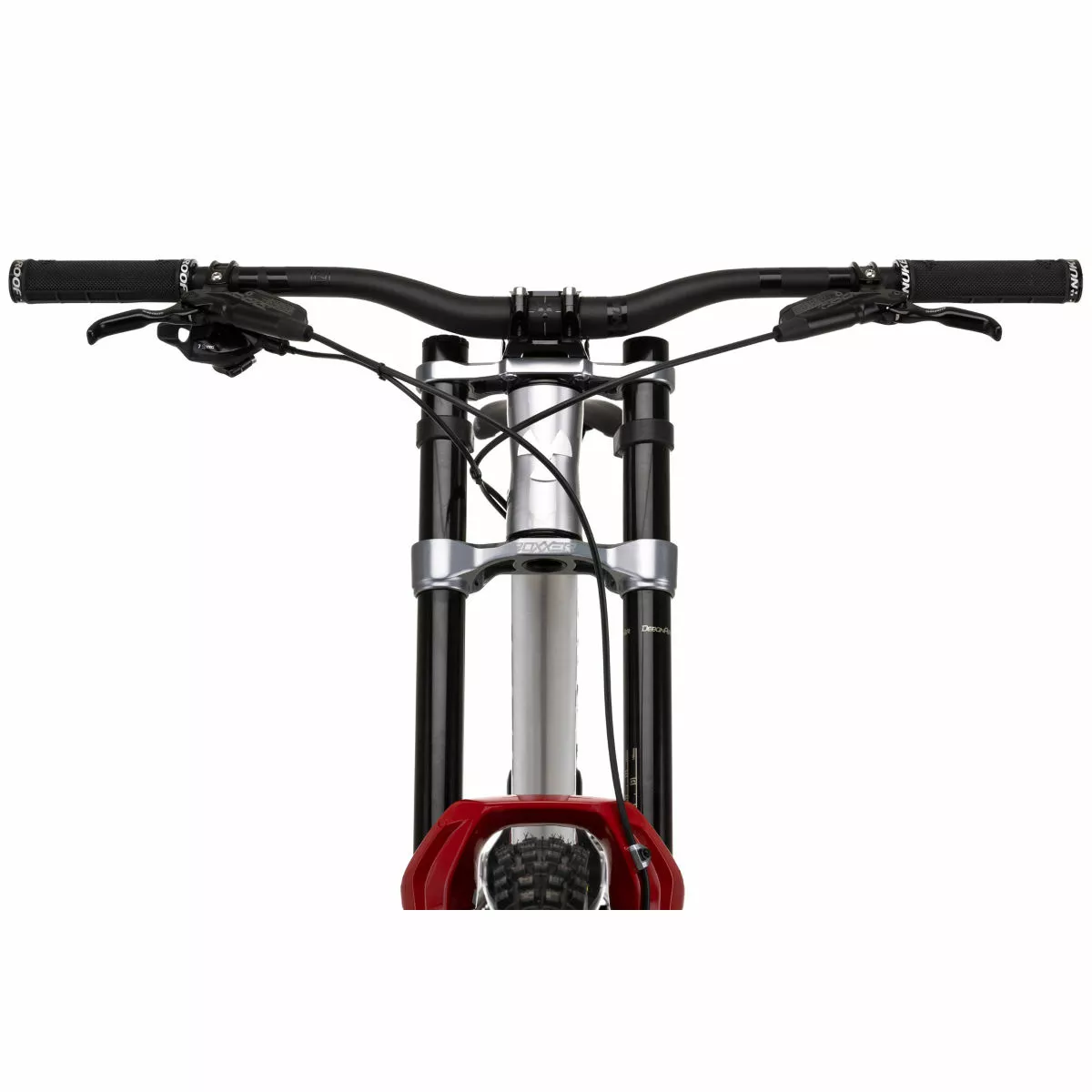

Handlebars: Nukeproof Horizon 25mm Rise, Width -S780mm, M780mm, L800mm, XL800mm
Stem: Nukeproof Horizon Direct Mount, 45mm, Black
Saddle: Nukeproof

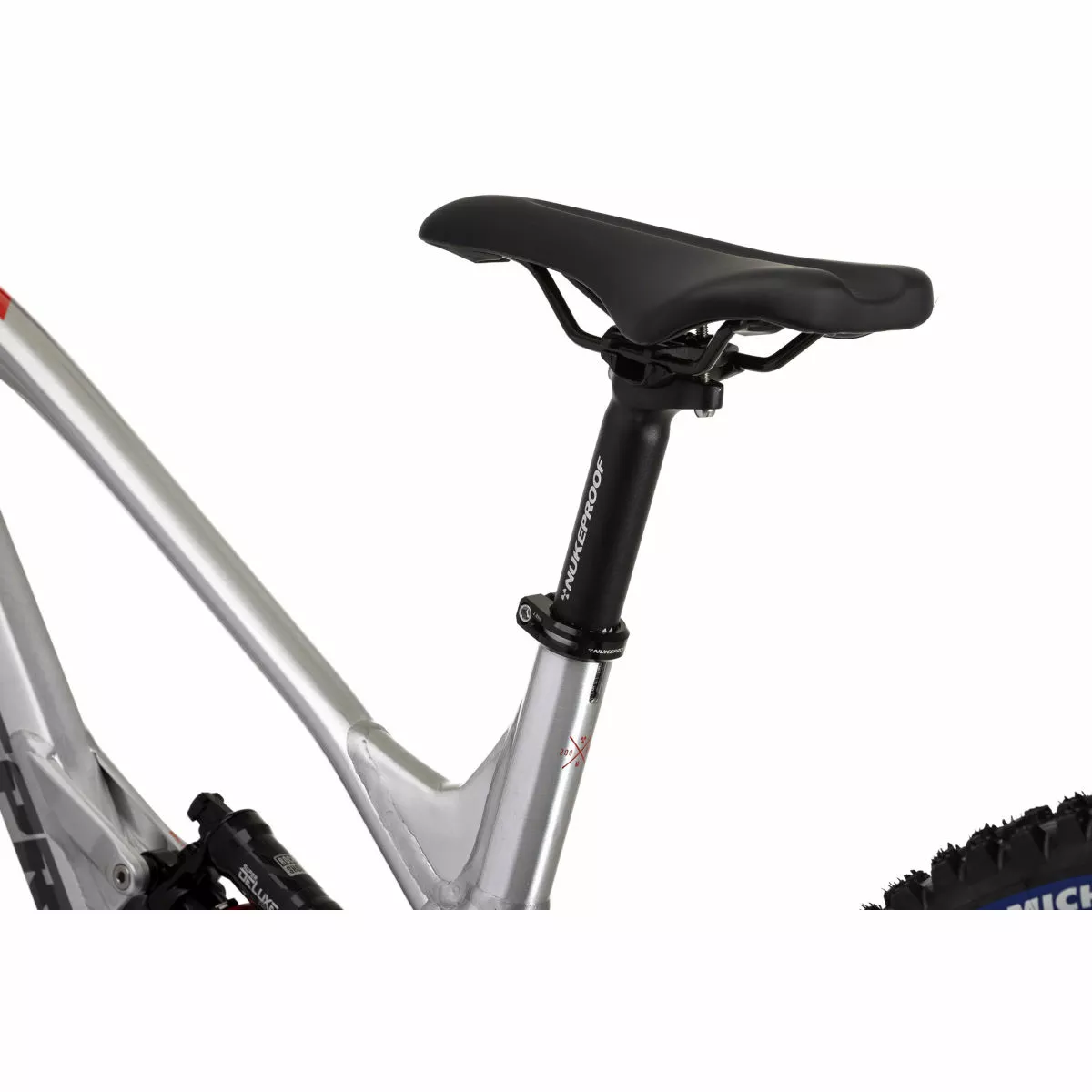

Seatpost: Nukeproof Neutron, 30.9mm, 300mm, 0 Offset
Headset: Nukeproof, 49IITS
Grips: Nukeproof Sam Hill Signature
Weight: 16.81kg Medium Tubeless

Key Information:

Dissent 297
Material: Hydroformed 6061 Triple-Butted Aluminium
Size: S/M/L/XL
Fork Travel: 200mm
Axle to Crown: 602mm
Fork Offset: 46mm
Rear Travel: 200mm
Wheels Size: Front: 29″; Rear: 27.5″
Max Tyre Size: 2.5″
Recommended Shock Sag (Measured standing): 30%
Shock Size: 250x75mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Headtube: 49mm Semi-Integrated
Headset: ZS49-28.6 / ZS49/40
Bearings Required: 6x BB 6902 LLU MAX, 2x 63804-2RS MAX
Seatpost: 30.9mm
Seat Clamp: 34.9mm
BB: Threaded 83mm BSA
Rear Hub: Boost 157x12mm
Rear Axle: Nukeproof M12x1.75 198mm
Chain Guide: ISCG05
Brake Mount: 200mm Direct Post

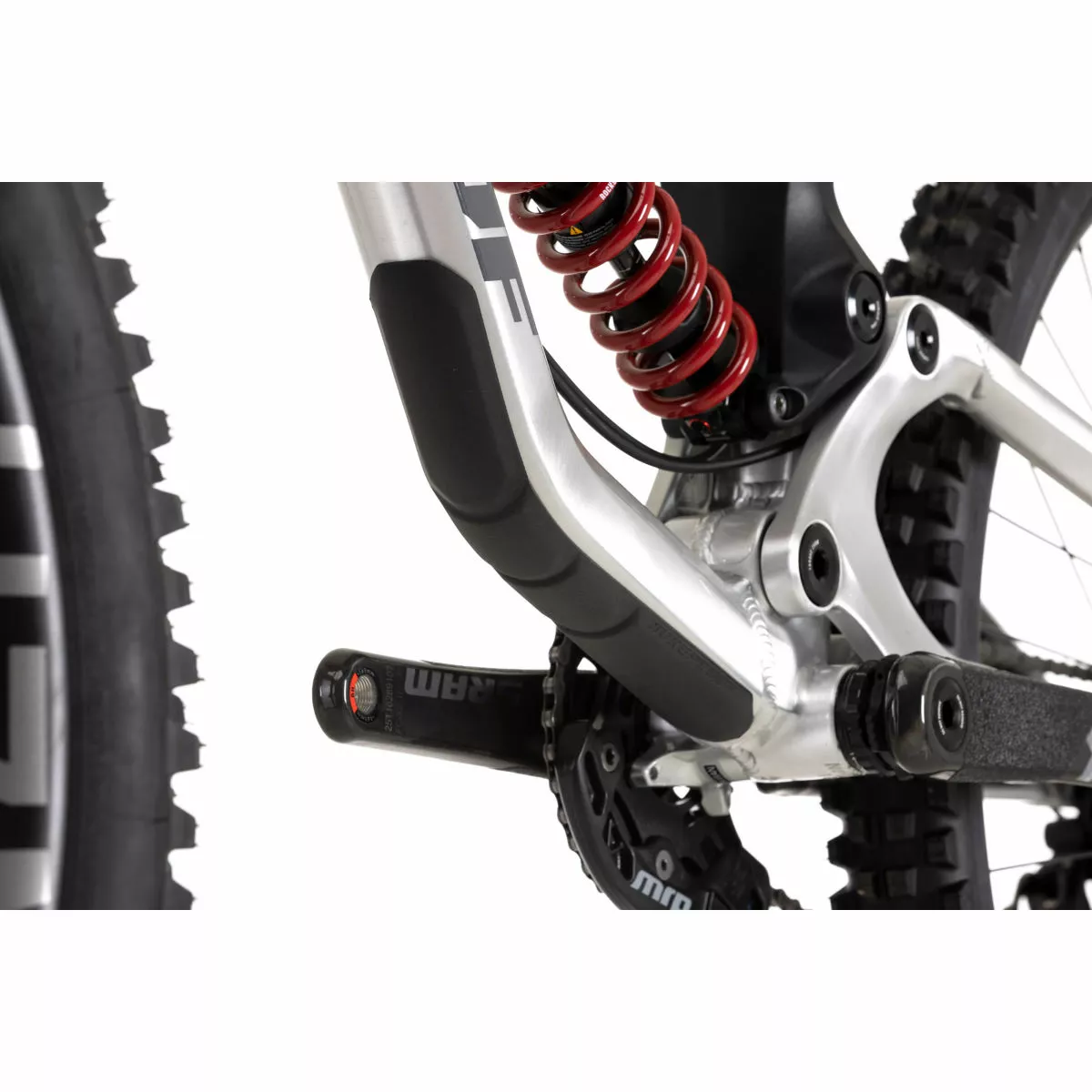

Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
